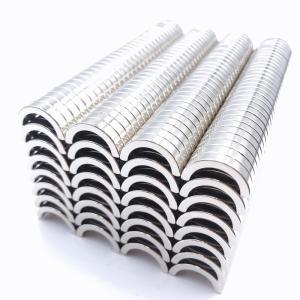

HSMAG SGS Multipurpose Strong Magnetic SmCo Rare Earth Permanent Arc Magnt 350C SGS

  • 1
  • 2

Brand Name : HSMAG

Model Number : SmCo

Certification : ITAF16949

Place of Origin : China

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000PCS 20Days

Delivery Time : 20 work days

Packaging Details : Cartons, sheet metal shielding packaging

Shape : Customized

Material : Sintered Samarium Cobalt

Application : Motor and magnet

Coating : Zn, Epoxy, Ni-Cu-Ni, Nickel, Au

Grade : SmCo Magnet, XG16 XG18 XG20 XG26A XG28A XG30A XG32A XG33EH

Tolerance : +/-0.05mm +/-0.1mm

Working temperature : 350℃

Contact Now

Rare Earth Permanent Magnet. SmCo Permanent Magnet, Strong Magnet

What are the components of samarium and cobalt?

SmCo5 magnet is composed of SmCo alloy and the Sm Co ratio is 1:5. Sm accounts for 36% of the total weight, while Co accounts for a small amount. It also contains other elements, such as iron, copper, hafnium and zirconium, but the amount is very small.SmCo5 magnet can provide a maximum magnetic energy product of 25 MGOe. Furthermore, it has the reversible temperature co-efficient of - 0.05% / ℃. At the same time, this magnet is easier to calibrate to a specific magnetic field than Sm2Co17 magnet. The Sm2Co17 magnet consists of SmCo alloy with a SmCo ratio of 2:17. 2 Sm atoms and 17 Co atoms. This magnetic energy product of this property is higher up to 32 MGOe, and the reversible temperature coefficient is - 0.03% / ℃.

The specific proportion is Sm: 23-28%

Rare earth metal cobalt: 48-52%

Metallic element Fe: 14-17%

Metal element Cu: 5-7%

A small amount of Zr: 2-3%

Inspection procedure:

Raw material inspection
Granularity inspection
Green compact inspection
Roughcast inspection
Magnetic property inspection
Dimensions inspection

Apperance inspection
Integrated physical inspection
Packing inspection

HSMAG SGS Multipurpose Strong Magnetic SmCo Rare Earth Permanent Arc Magnt 350C SGSHSMAG SGS Multipurpose Strong Magnetic SmCo Rare Earth Permanent Arc Magnt 350C SGS

HSMAG SGS Multipurpose Strong Magnetic SmCo Rare Earth Permanent Arc Magnt 350C SGSHSMAG SGS Multipurpose Strong Magnetic SmCo Rare Earth Permanent Arc Magnt 350C SGS

Product Paramenters

Product Name
Custom Made SmCo Magnetic
Product Materials
Samarium Cobalt Magnet
Product Materials
Rare earth Magnet
Size of the products
Accept Customized
Working Temp
350°C
Magnetic direction
Through thickness direction, the flat surface is magnetic field.
Vertical pull force
can pull on metal board more than 19 pieces A4 paper
Testing method
Manual testing
Application
Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail

Froperties of SmCo Magnets

HSMAG SGS Multipurpose Strong Magnetic SmCo Rare Earth Permanent Arc Magnt 350C SGS

Our Certificates

HSMAG SGS Multipurpose Strong Magnetic SmCo Rare Earth Permanent Arc Magnt 350C SGS

Logistics And Trade

HSMAG SGS Multipurpose Strong Magnetic SmCo Rare Earth Permanent Arc Magnt 350C SGS

Product Paramenters

Product Name
Custom Made SmCo Magnetic
Product Materials
Samarium Cobalt Magnet
Product Materials
Rare earth Magnet
Size of the products
Accept Customized
Working Temp
350°C
Magnetic direction
Through thickness direction, the flat surface is magnetic field.
Vertical pull force
can pull on metal board more than 19 pieces A4 paper
Testing method
Manual testing
Application
Servo motor,Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Rail
